INTEGRATED DRIVE
Compact 24 V hub gear motors with integrated planetary reduction for mobile robots, automated equipment and compact drive systems.
24 V DC | 9.75:1 Reduction Ratio | IP67 Protection
Available Models
Two compact 24 V hub gear motor configurations are available for different torque and power requirements.
INTEGRATED DRIVE
Compact 24 V configuration for light-duty mobile robotics and automated drive systems.
3 Nm
Rated Torque
45 W
Rated Power
130 rpm
Rated Speed
9.75:1
Ratio
99 mm
Diameter
IP67
Protection
INTEGRATED DRIVE
A compact 24 V hub gear motor designed for higher torque and power requirements in demanding applications.
6 Nm
Rated Torque
75 W
Rated Power
110 rpm
Rated Speed
9.75:1
Ratio
99 mm
Diameter
IP67
Protection
TECHNICAL SPECIFICATIONS
Select a model to review its performance, electrical and mechanical specifications.
HUB Series
Compact 24 V configuration for light-duty mobile robotics and automated drive systems.
Download HUB Series PDF →Available Models
HRM-099-006
| Parameter | Unit | Specification |
|---|

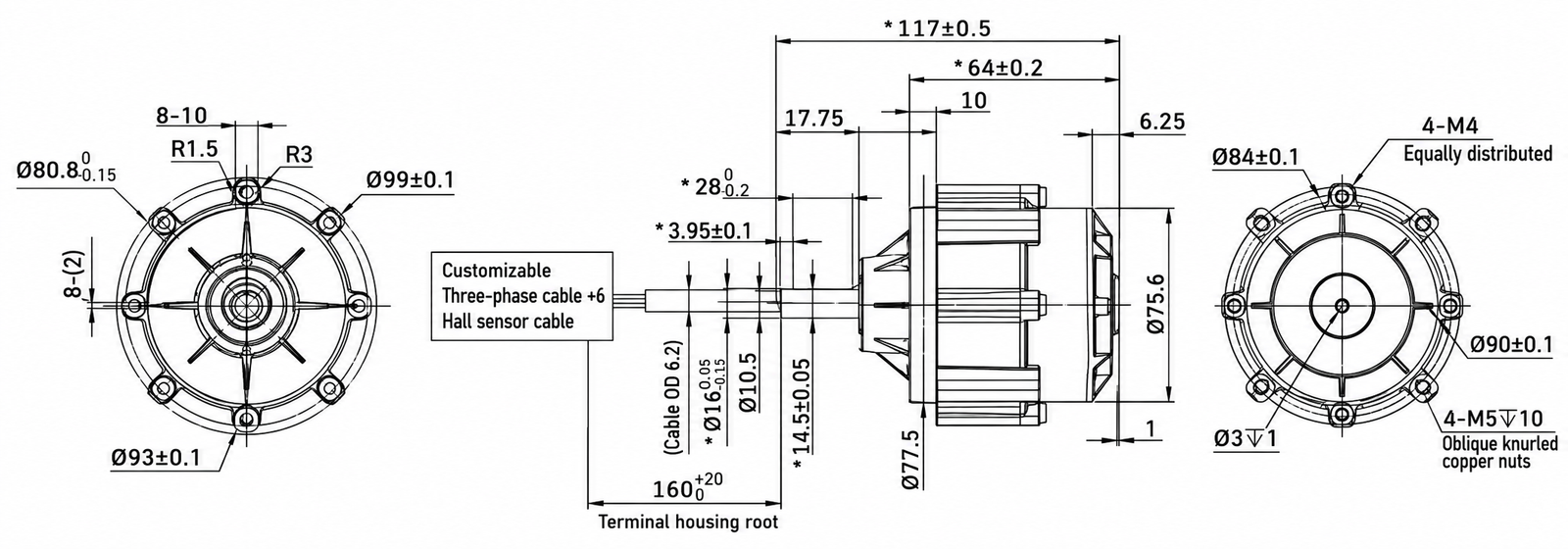

Confirm the final drawing, interface, cable configuration and application requirements with ARTUS before ordering.
Specifications are provided for reference. Confirm the final model drawing and application requirements with ARTUS before placing an order.
Share your torque, reduction ratio, motor specifications, and installation requirements. Our engineering team can help you select a suitable gear reducer for your application.
Request a Quote →
