Harmonic reducers are critical transmission components used in robot joint modules, providing high precision, compact design and high torque density for modern robotic systems.
Their lubrication performance directly affects positioning accuracy, efficiency, noise level and service life, especially in humanoid robots, collaborative robots and industrial automation applications.
Why Lubrication Matters in Robot Joint Modules
A robot joint module integrates multiple precision components, including a harmonic reducer, motor, encoder and control system. Among these components, the harmonic reducer requires special attention because its internal gears and flexible elements operate under complex loading conditions.
Why Harmonic Reducers Require Special Grease

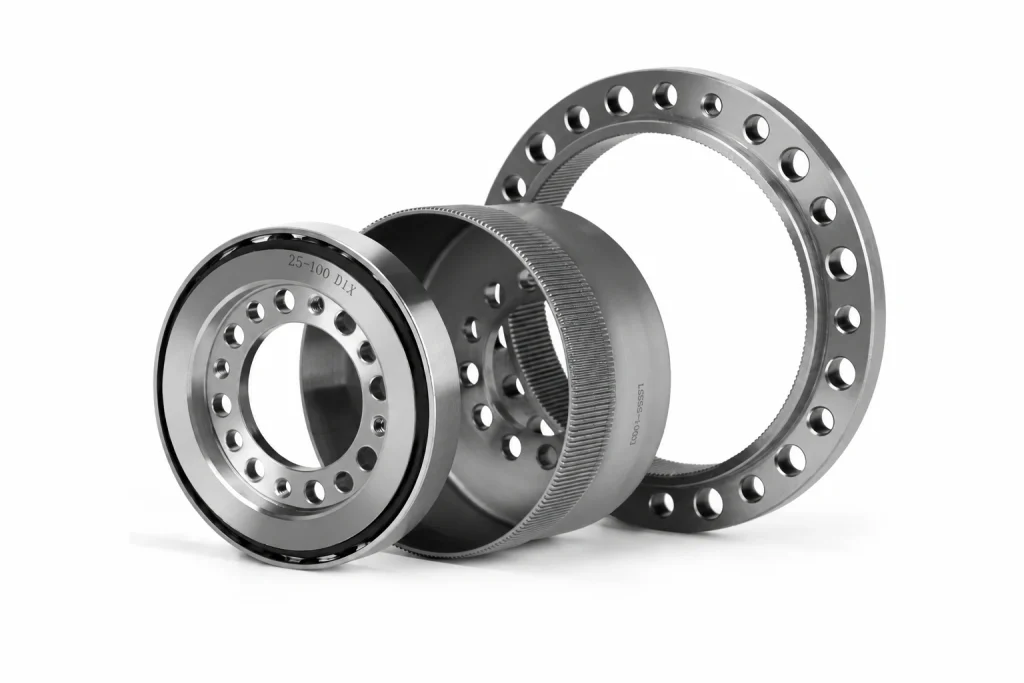

Unlike conventional industrial gear systems, harmonic reducers have unique mechanical structures consisting of a wave generator, flexspline and circular spline.
During operation, the flexspline undergoes continuous elastic deformation while the gear teeth experience complex sliding and rolling contact. Therefore, the selected grease must provide excellent lubrication performance under high precision and repeated motion conditions.
Key Grease Requirements for Harmonic Reducers
| Parameter | Requirement |
|---|---|
| Base Oil | Synthetic PAO or Ester Oil |
| Temperature Range | Wide operating temperature range |
| Wear Resistance | Excellent anti-wear performance |
| Oil Separation | Low oil separation |
| Noise Performance | Low noise operation |
| Compatibility | Compatible with seals and precision components |
Common Lubrication Mistakes in Robot Joint Modules
Using unsuitable grease can negatively affect the performance of robot joint modules.
Common mistakes include selecting general industrial grease, applying excessive lubricant, or mixing different grease types.
These issues may increase friction, generate additional heat and reduce the positioning accuracy and service life of robotic joints.
How ARTUS Ensures Reliable Robot Motion
ARTUS develops integrated robot joint modules combining precision reducers, motors, encoders and drive systems.
